Mounting piece for element
Installation piece for lightweight elements and hollow core slabs.
Product options
Mounting piece for element, yellow 3mm
| Product code | 704120 |
|---|---|
| Package size | 24 bag |
Mounting piece for element, red 5mm
| Product code | 704125 |
|---|---|
| Package size | 24 bag |
Mounting piece for element, blue 10mm
| Product code | 704130 |
|---|---|
| Package size | 24 bag |
Mounting piece for element, black 15mm
| Product code | 704135 |
|---|---|
| Package size | 24 bag |
Product details
Installation piece for lightweight elements and hollow core slabs.

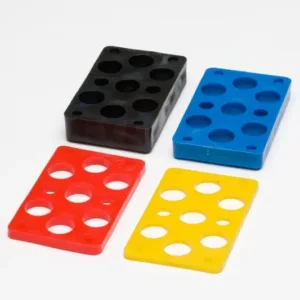

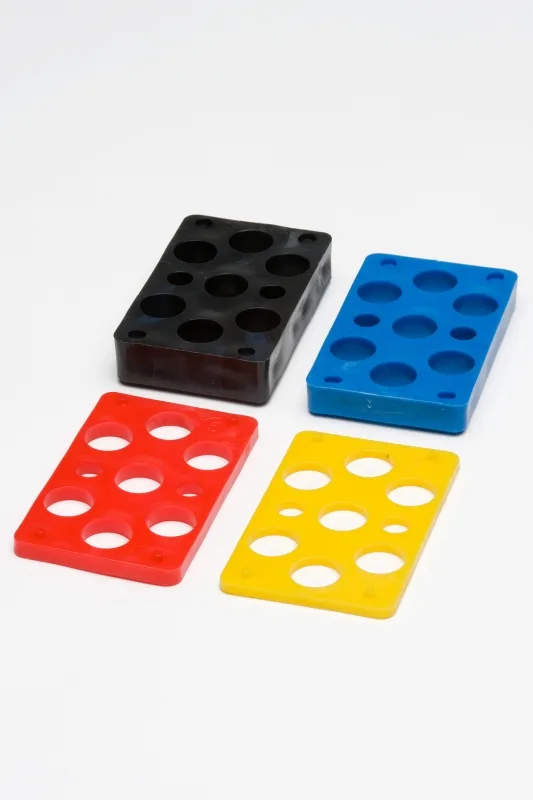

The installation pieces made of polycarbonate are color-coded and have thickness markings. They have been tested with a load of 2000 kg by TTY.
“…in summary, it can be concluded that the supports tested at 3, 5, 10, and 15 mm withstood the required load of 2000 kg under standard conditions (22 ºC) with a compression limit of 10%. Temperature changes affect compression, so these must be considered in strength calculations—especially at elevated temperatures.”
Thicknesses: 3 mm, 5 mm, 10 mm, 15 mm
Length: 80 mm
Width: 50 mm
| Material | polycarbonate |
|---|
