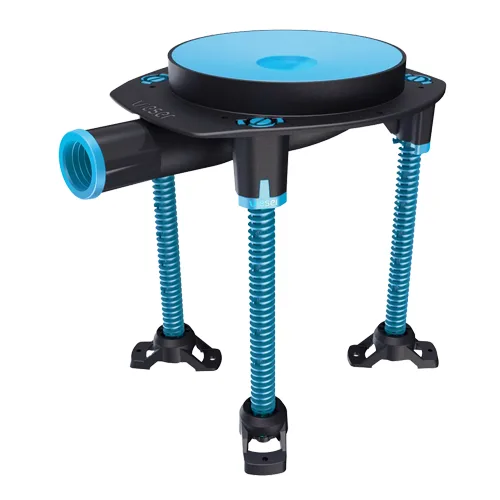

Dry drain DN32/DN40 Vieser One 52640

Product code 441600
HVAC number 3315936
Package size 7 pcs
pcs

Product details

Dry floor drain for the drainage of ordinary domestic wastewater according to part D1 of the Finnish Building Code.
Suitable for pipe sizes DN32 or DN40.

The package includes the drain, casting supports, casting cover, wedge ring, gasket, pipe size adapter, and installation tool for the wedge ring. With the casting supports included with the Vieser One dry drain, the height can be adjusted up to a maximum of 280 mm. A spare part kit for casting supports (Vieser no. 52716 & LVI no. 3315948) is also available, allowing the dry drain to be raised up to a height of 345 mm.

Used, for example, in sauna spaces. Not suitable for installation under a shower.

The dry drain has no water trap. The dry drain must be connected to a drain with a water trap.
The floor drain is compatible with Vieser elevation rings, casting elevation ring, waterproofing flange, and drain covers.

Sales unit pcs
Size DN32/40
Colour black
Usage unit pcs
Conversion factor 1
Length of the sales unit (mm) 230
Width of the sales unit (mm) 300
Height of the sales unit (mm) 105
Weight of the sales unit (kg) 0.5
Package type box
