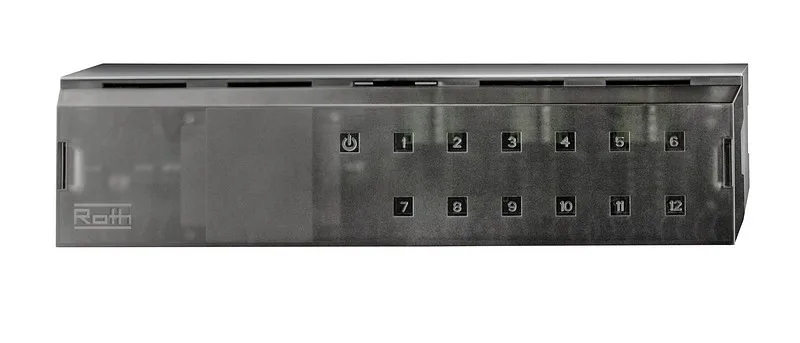

Roth Touchline®BL 24V control unit 6 ch

Product code 429837
HVAC number 2070849
Package size 1 pcs
pcs

Product details

Roth Basicline connection box 6 channels The Roth Basicline system includes a 6- or 12-channel connection unit, which is connected to thermostats via wires. The thermostat is available in a standard version or with a floor sensor (multithermostat). Actuator 24V NC (closed when no power). Maximum number of actuators for 6 channels: 12 pcs 1W or 8 pcs 2W. Maximum number of actuators per channel: 5 pcs. Night temperature reduction 4 °C from the set value.

Sales unit pcs
Length of the sales unit (mm) 355
Width of the sales unit (mm) 62
Height of the sales unit (mm) 130
Weight of the sales unit (kg) 1.5
Installation instructions
  • 431720_AO_Kytkentalaatikko-Roth-6-kanavaa-Basicline-230V24V.pdf (1 186 kt) Open Download
Technical specifications
  • 429837_TE_Pistoliitin-jakotukki-Roth-TT-18mm-1-osainen.pdf (943 kt) Open Download
User instructions
