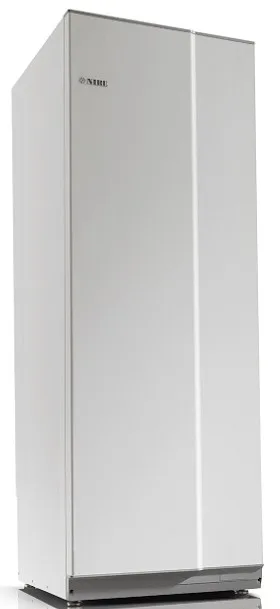

Nibe Compact is suitable for most single-family houses.
Product code | 472830 |
---|---|
HVAC number | 5271045 |
Nibe Compact is suitable for most single-family houses. Nibe Compact water heaters are designed to blend seamlessly into the home. The outer casing of the water heater is made of steel sheet and features a proportionate lower section that conceals pipe connections from the floor, ceiling, or side. The tank itself is made of stainless steel/copper-coated or enamelled steel. The tank is insulated with environmentally friendly polystyrene (EPS), which minimizes heat loss.
The water heater is connected to a 400 V 2-phase connection (output 3 kW) or alternatively to a 230 V 1-phase connection (output 1 kW). The heaters are also equipped with all necessary valves: a mixing valve, shut-off/check valve, and a safety valve with a drainage function. The thermostat can be set to a maximum of 80° C.
Sales unit | pcs |
---|---|
Enclosure class | IP24 |
Connection voltage | 1,0 kW 230 V:n 1-vaihteliitännässä / 3,0 kW 400 V:n 2-vaiheliitännässä |
Length of the sales unit (mm) | 615 |
---|---|
Width of the sales unit (mm) | 600 |
Height of the sales unit (mm) | 1710 |
