Product options

Placeholder

16×16 Straight connector Alpex-Plus® PPSU push-fit connection

Product code 426510
pcs
Placeholder

20×20 Straight connector Alpex-Plus® PPSU push-fit connection

Product code 426515
pcs

Product details

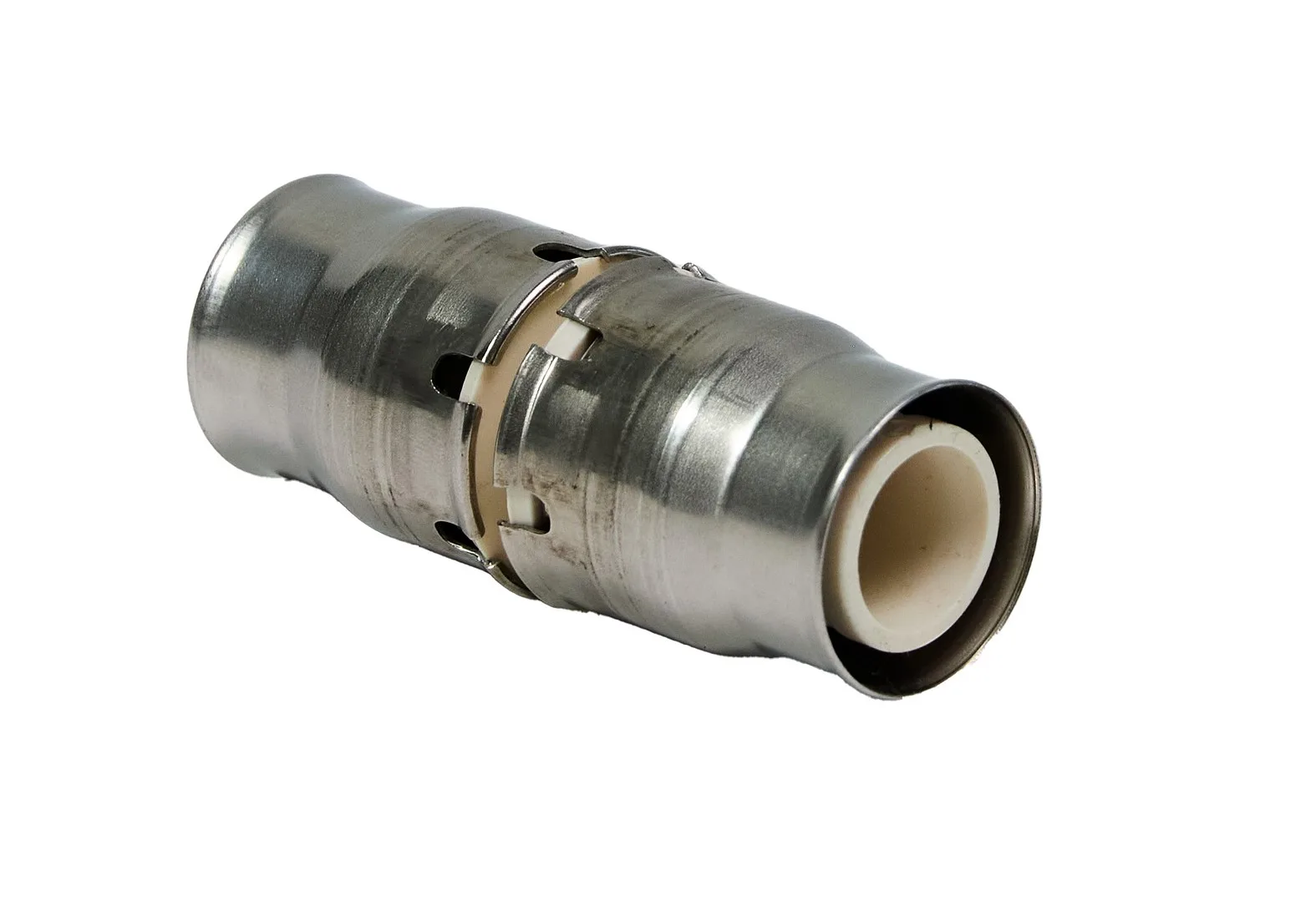

Straight plug connector for connecting composite pipes in water, heating, and cooling installations.

Alpex-Plus® plug connectors save time and costs due to their quick installation. Plug connectors are particularly well-suited for tight and restricted installation conditions. Fittings made from PPSU (polyphenylsulfone) have high impact resistance, very low sensitivity to cracking under stress, and exceptional hot water resistance. Polyphenylsulfone (PPSU) is an amorphous material that withstands chemical agents excellently and is fire-safe according to the DIN 4102 standard B2 classification. The sleeve and fastening elements of the plug connectors are made of stainless steel, making them suitable for demanding installations.

In sizes 16-20mm, Alpex-Plus® plug connectors can be removed and reused during installation before pressure testing.

Material quality PPSU
Colour white
Fire class B2
Usage unit pcs
ETIM group EG015540
ETIM class EC003024
Building 2000 class 611.55
Standard EN 13501-1
Installation instructions
Type approvals
  • TH_Komposiittiputket-ja-osat-Alpex-Duo-tyyppihyvaksynta.pdf (448 kt) Open Download
Warranty terms
