Oras 1035FS Safira kitchen mixer pkv

Product code 484185
HVAC number 6219174
Package size 1 pcs
pcs

Product details

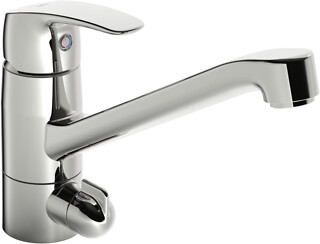

Oras Safira 1035FS kitchen mixer with a washing machine valve. The mixer features a swiveling spout at 120° (the spout can be limited to 40°-80°). The washing machine valve has a ceramic control valve (90° open – closed). Flexible connection pipes.

Aerator type: standard aerator
Connection type: flexible connection pipes
Type of washing machine valve: mechanical washing machine valve
Lever/type of handle: single lever/handle, hot/cold symbols
Mechanical parts: ø 40 mm adjustment part
Special features: inner body made of zinc and corrosion-resistant brass, 3S Installation mounting system
Spout type: swiveling spout, angle limitation option, profile structure
Color: chrome
Temperature adjustments: possibility to limit temperature and flow
Flow at 300 kPa: 0.25 l/s
Pressure drop at flow (0.2 l/s): 195 kPa
Connection size: G3/8
Hot water: max. +70 °C
Material: brass
Reach: 213 mm
Operating pressure: 50 – 1000 kPa
Noise class: I (ISO 3822) Oras lab.

Sales unit pcs
Material brass
Colour chrome
Length of the sales unit (mm) 590
Width of the sales unit (mm) 290
Height of the sales unit (mm) 65
Weight of the sales unit (kg) 1.7
Installation instructions

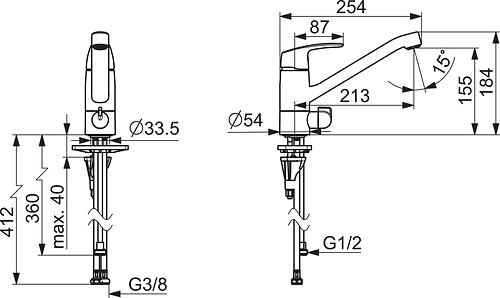

Technical drawings
