Oras 1039F Safira kitchen mixer pkv

Product code 484195
HVAC number 6219127
Package size 1 pcs
pcs

Product details

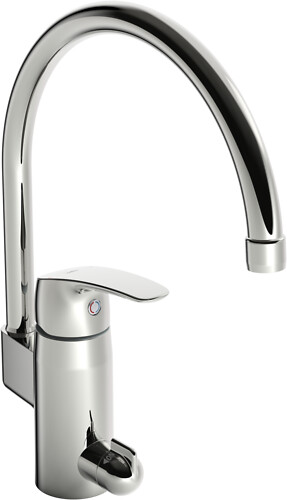

Oras Safira 1039F kitchen mixer with a washing machine valve. The 1039F kitchen mixer features a washing machine valve and a swiveling high spout at 120° (the spout can be limited to 0° or 60°). The washing machine valve has a ceramic control valve (90 ° open – closed). The mixer includes flexible connection pipes.

Connection type: flexible connection pipes
Type of washing machine valve: mechanical washing machine valve
Lever/type of handle: single lever/handle, hot/cold symbols
Mechanical parts: ø 40 mm adjustment part
Special features: 3S Installation mounting system
Spout type: swiveling spout, angle limitation option
Color: chrome
Temperature adjustments: possibility to limit temperature and flow
Flow at 300 kPa: 0.23 l/s
Pressure drop at flow (0.2 l/s): 240 kPa
Connection size: G3/8
Hot water: max. +70 °C
Material: brass
Reach: 178 mm
Operating pressure: 50 – 1000 kPa
Noise class: I (ISO 3822)

Sales unit pcs
Material brass
Colour chrome
Length of the sales unit (mm) 325
Width of the sales unit (mm) 730
Height of the sales unit (mm) 56
Weight of the sales unit (kg) 2.12
Installation instructions

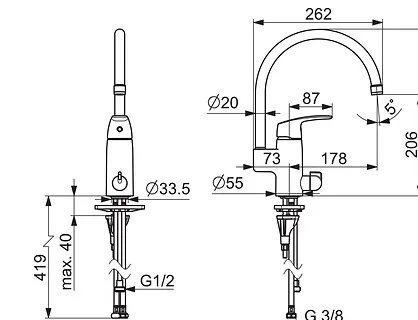

Technical drawings
