Oras 1012F Safira washbasin mixer + bidet

Product code 484217
HVAC number 6110326
Package size 1 pcs
pcs

Product details

Oras Safira 1012F with Bidetta hand shower. The basin mixer includes a Bidetta hand shower, holder, and 1.75 m shower hose. The basin mixer features a fixed spout, aerator, and flexible connection hoses.

Aerator type: standard aerator
Connection type: flexible connection pipes, internal thread
Extensions: chain holder without chain
Type of hand shower: Bidetta hand shower
Lever/type of handle: single lever/handle, hot/cold symbols
Mechanical parts: ø 40 mm adjustment part
Shower parts: shower holder, shower hose (1750 mm)
Special features: 3S Installation mounting system
Spout type: fixed spout, cast structure
Color: chrome
Temperature adjustments: possibility to limit temperature and flow
Flow at 300 kPa: 0.13 l/s
Pressure drop at flow (0.1 l/s): 160 kPa
Connection size: G3/8
Hot water: max. +70 °C
Material: brass
Reach: 107 mm
Operating pressure: 50 – 1000 kPa
Noise class: I (ISO 3822) Oras lab.

Sales unit pcs
Material brass
Colour chrome
Length of the sales unit (mm) 540
Width of the sales unit (mm) 146
Height of the sales unit (mm) 59
Weight of the sales unit (kg) 1.55
Installation instructions

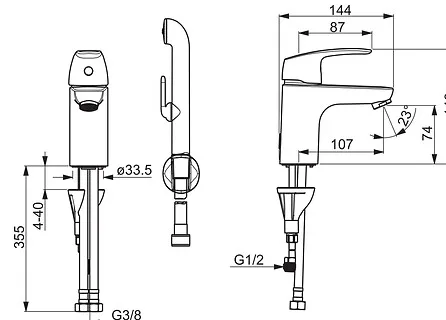

Technical drawings
