Oras 1014F Safira washbasin mixer pkv + bidet

Product code 484218
HVAC number 6110355
Package size 1 pcs
pcs

Product details

Oras Safira 1014F with Bidetta hand shower and washing machine valve. The basin mixer includes a washing machine valve, Bidetta hand shower, holder, and a swiveling spout at 120° (possibility to limit to 40°-80°). Flexible connection pipes.

Aerator type: standard aerator
Connection type: flexible connection pipes
Lever/type of handle: single lever/handle, hot/cold symbols
Mechanical parts: ø 40 mm adjustment part
Spout type: swiveling spout, angle limitation option, profile structure
Color: chrome
Temperature adjustments: possibility to limit temperature and flow
Flow at 300 kPa: 0.14 l/s
Pressure drop at flow (0.1 l/s): 160 kPa
Connection size: G3/8
Hot water: max. +70 °C
Material: brass
Reach: 133 mm
Operating pressure: 50 – 1000 kPa
Noise class: I (ISO 3822)

Sales unit pcs
Material brass
Colour chrome
Length of the sales unit (mm) 590
Width of the sales unit (mm) 290
Height of the sales unit (mm) 65
Weight of the sales unit (kg) 1.93
Installation instructions

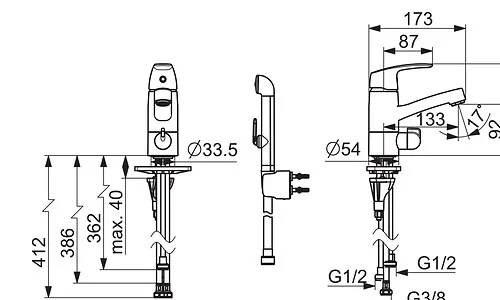

Technical drawings
  • 484218_M1_Oras 1014F Safira Pesuallashana pkv + bide.png (29 kt) Open Download
