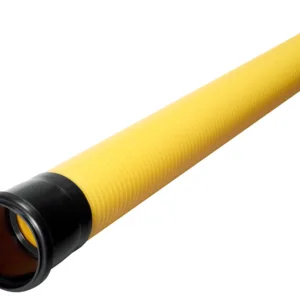

TEL A cable protection pipe SN16 yello
Triple-layered cable protection pipe for underground electrical cables in heavily trafficked areas
Product options
TEL A cable protection pipe 110mm x 6 m SN16 yello
| Product code | 133220 |
|---|---|
| HVAC number | 9412531 |
| Package size | 50 pc. |
TEL A cable protection pipe 140mm x 6m SN16 yellow
| Product code | 133221 |
|---|---|
| HVAC number | 9412532 |
| Package size | 30 pcs |
TEL A cable protection pipe 160mm x 6m SN16 yellow
| Product code | 133222 |
|---|---|
| HVAC number | 9412533 |
| Package size | 26 pcs |
Product details
Triple-layered cable protection pipe for underground electrical cables in heavily trafficked areas

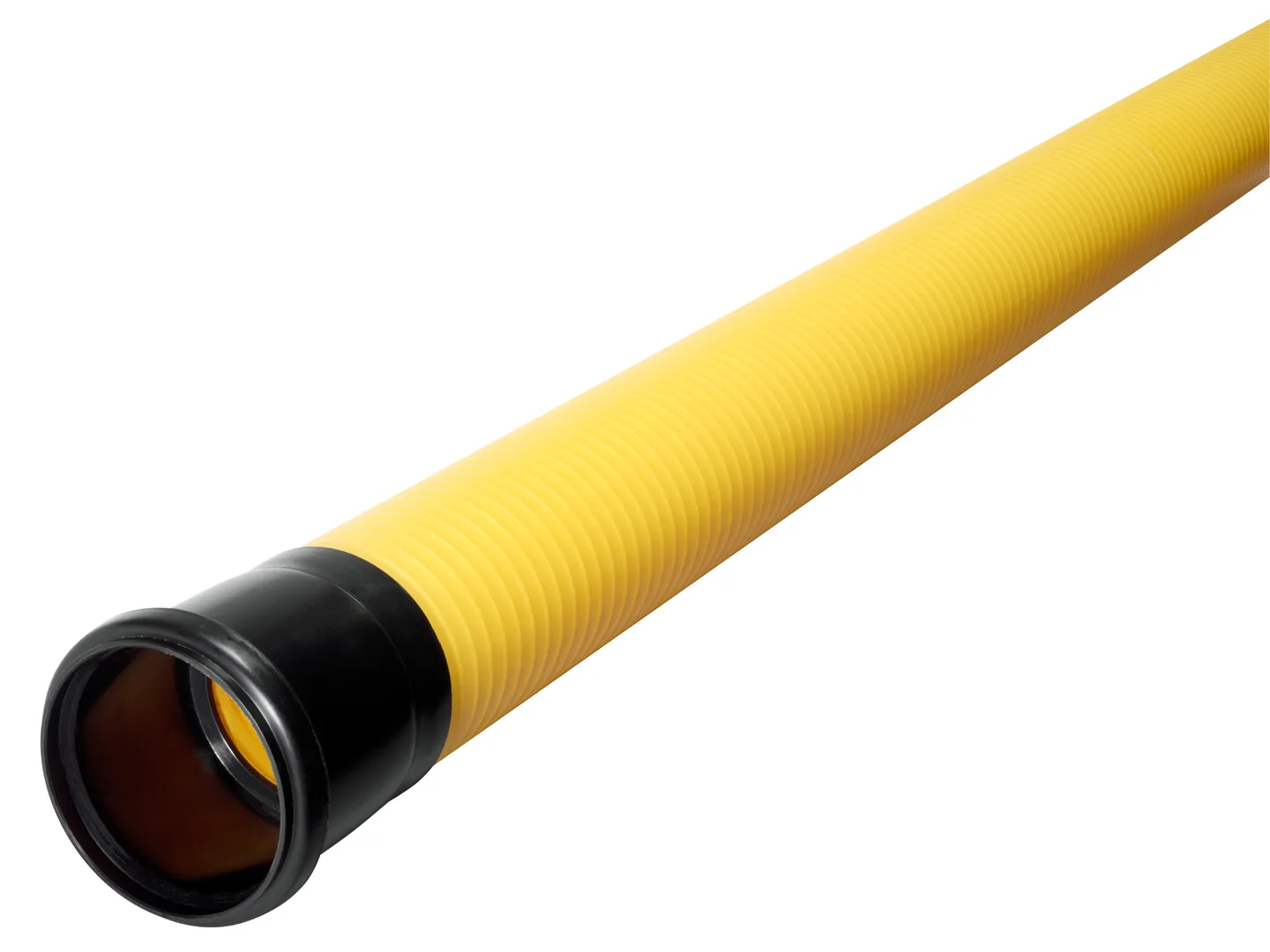

Meltex triple cable protection pipe is a so-called triple-layer pipe with smooth surfaces on both the outside and inside. TEL A, or SN16 class pipe, is suitable for ground installations and sand-sheathed ducts in heavy traffic areas as well as for road and street crossings. The TEL A triple pipe has a ring stiffness of SN ≥ 16 kN/m2, with a maximum installation depth of 6.0 m. The pipe is equipped with a sealing ring. Signal color is yellow, and the intended use is for electrical installations
The triple-layer cable protection pipe meets the technical requirements of standard SFS 5608
| Usage length | 6 m |
|---|---|
| Material | polyethylene |
| Ring stiffness | SN16 |
| Colour | yellow |
| External surface color | yellow |
| Internal surface color | yellow |
| Usage unit | m |
| Customs tariff number | 39172110 |
| ETIM group | EG000002 |
| Conversion factor | 6 |
| ETIM class | EC000253 |
| Building 2000 class | 147 |
| Package type | frame |
|---|
