TEL B cable protection pipe 110mm x 6m SN8 green

Product code 133325
HVAC number 9412512
Package size 50 pcs
pcs
Available from the central warehouse
Jyväskylä
Espoo
Tuusula
Kempele
Kaivoksela
Tampere
Kuopio
Helsinki
Turku
Seinäjoki
Sipoo

Product details

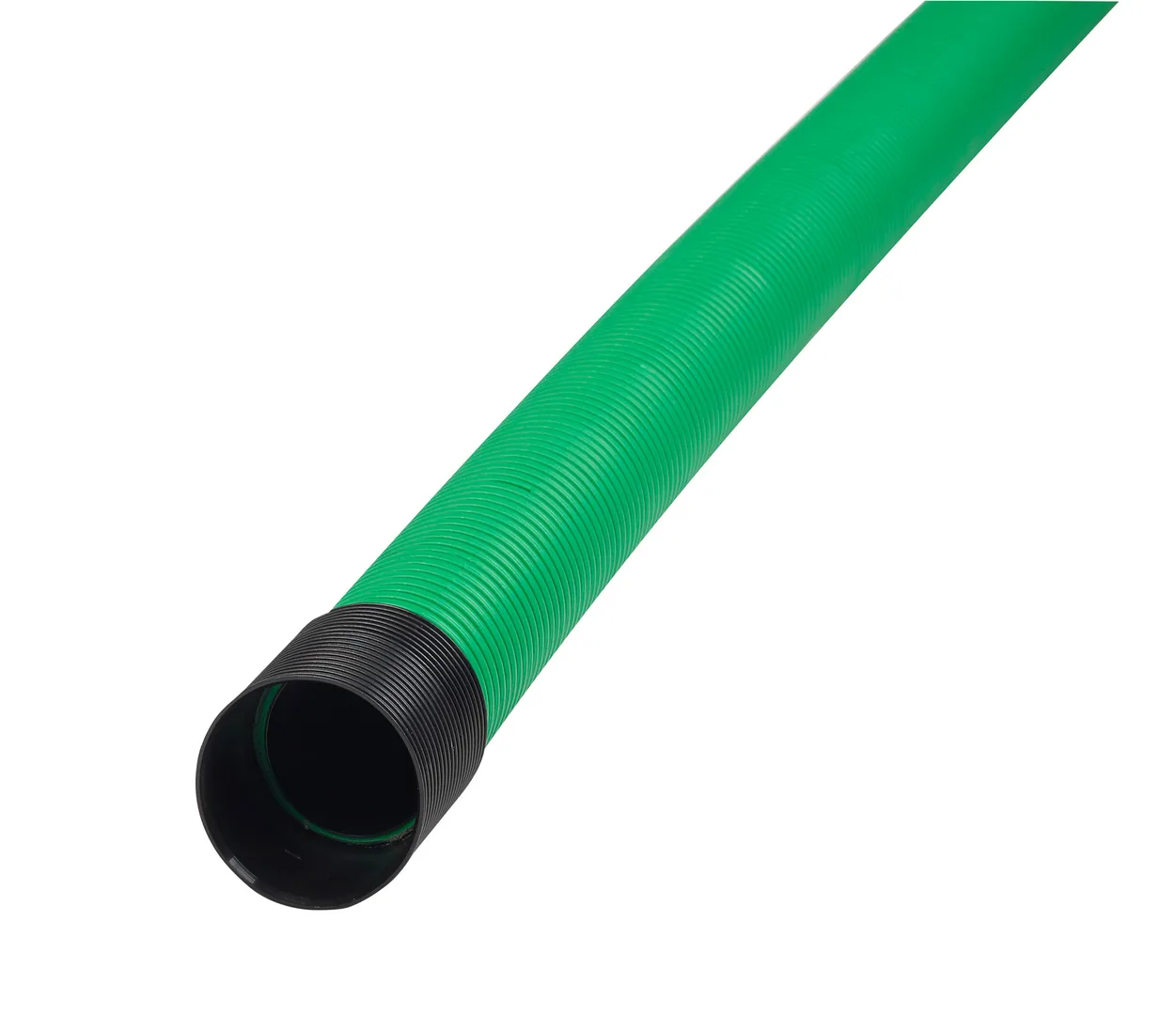

Double-layered cable protection pipe for underground cables for traffic light systems and general use

Meltex double cable protection pipe is a so-called double-layer pipe with a corrugated outer surface and a smooth inner surface. TEL B, or SN8 class pipe, is suitable for concrete-sheathed ducts and ground installations outside heavy traffic areas. The TEL B double pipe has a ring stiffness of SN ≥ 8 kN/m2, with a maximum installation depth of 6.0 m. The pipe is equipped with a sealing ring. Signal color is green, and the intended use is for traffic light systems and general use

The double-layer cable protection pipe meets the technical requirements of standard SFS 5608

Sales unit pcs
Inner diameter 95 mm
Outer diameter 110 mm
Usage length 6 m
Material polyethylene
Ring stiffness SN8
Colour green
External surface color green
Internal surface color black
Usage unit m
Customs tariff number 39172110
ETIM group EG000002
Conversion factor 6
ETIM class EC000253
Building 2000 class 147
Product area L
Height of the sales unit (mm) 50
Weight of the sales unit (kg) 4.03
Package type frame
Brochures
Declarations of conformity
Ympäristöselosteet
  • EPD_Double-and-triple-wall-polyethylene-pipes-for-cable-protection.pdf (1 430 kt) Open Download
