MX-Rainwater chamber 315/110-160 with telescope

Product code 124633
Pakkauskoko 36 pc.
pc.

Product details

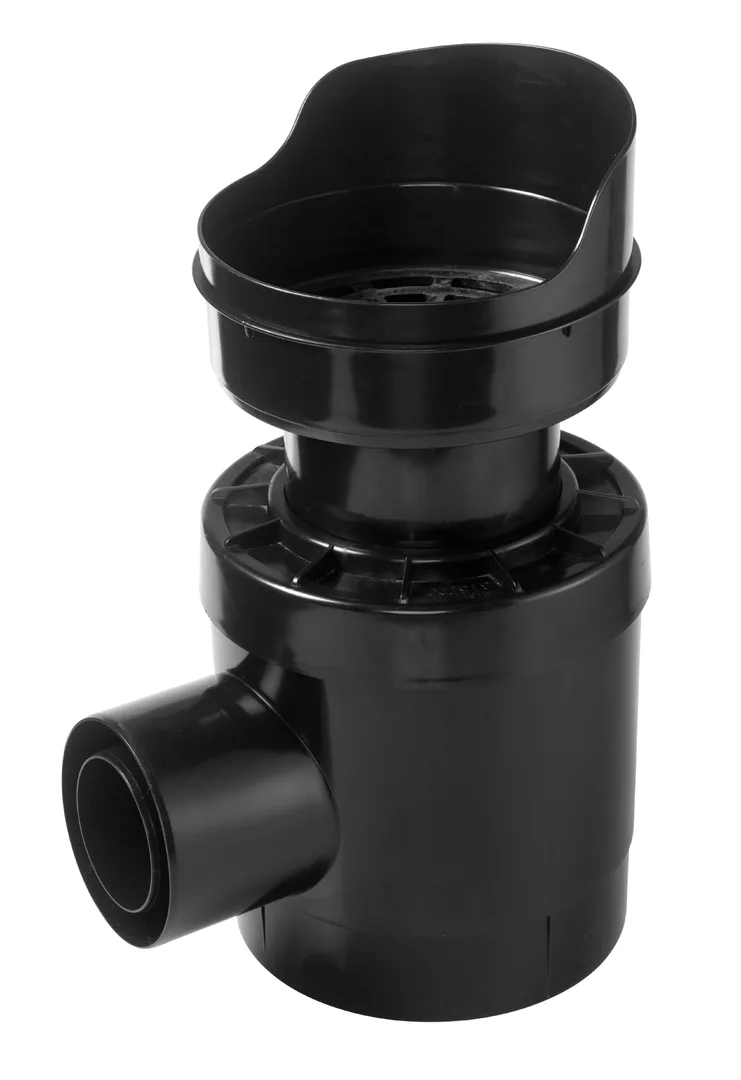

Telescopic gutter well with sediment trap. Easy height adjustment based on yard fill and surface!

The gutter well is installed beneath the downspout along the building wall. A protective grid prevents leaves and other debris from entering the stormwater drain. The MX gutter well package features a telescopic adjustment range of 169 mm, allowing the well’s height to be easily set between 350 and 519 mm depending on yard fill and surface.

The MX gutter well has a 75 mm sediment trap and a 200 mm telescopic riser with a grate cover and fixed splash guard. The well comes with an outlet connection for 110 mm and 160 mm pipes. The removable cast iron grate makes cleaning the well easier.

Now installing a gutter well is easier than ever!

Sales unit pc.
Material polyethylene
Colour black
Discharge connection diameter 110 mm
Bottom outer diameter 315 mm
Body height 344 mm
Usage unit pcs
Conversion factor 1
Building 2000 class 257.1
Length of the sales unit (mm) 400
Width of the sales unit (mm) 320
Height of the sales unit (mm) 550
Weight of the sales unit (kg) 4.8
Package type pallet
DWG
Tekniset kuvat
  • 124633_M1_MX-rannikaivopaketti-315-110-160 teleskoopilla.pdf (111 kt) Open Download
