Rainwater chamber package 315×500 R with crating c

Product code 124640
HVAC number 2606587
pcs

Product details

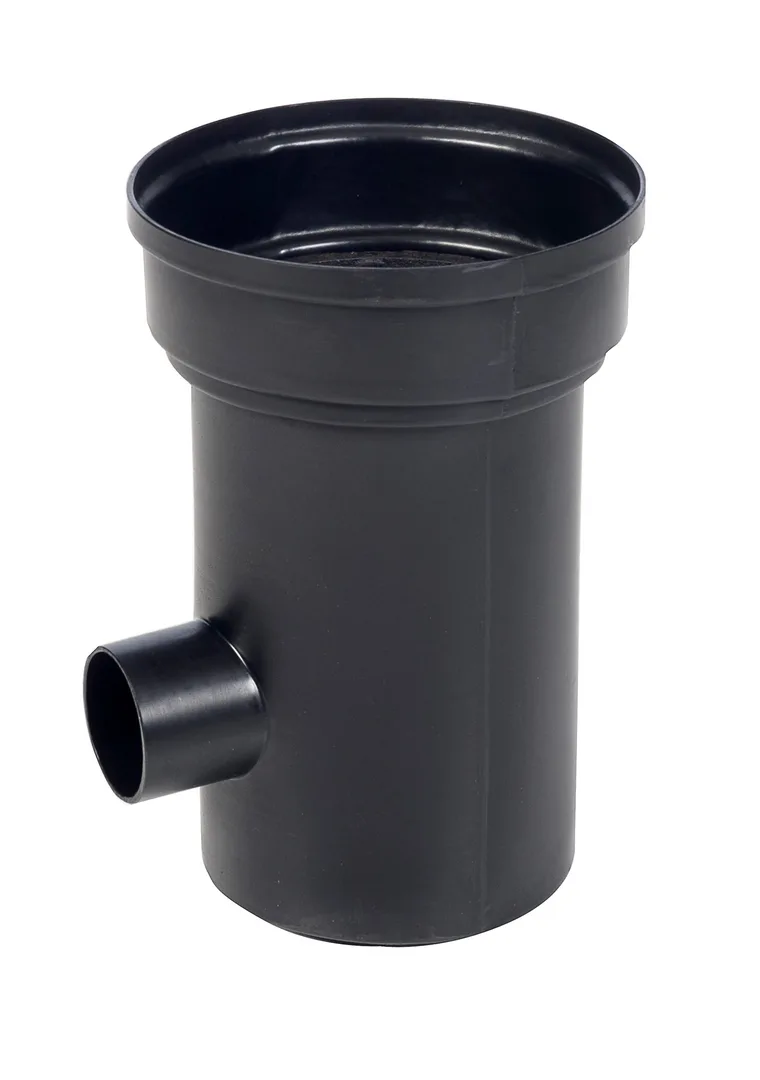

Rotationally molded gutter well for directing water from the roof. Sturdy solution for large volumes of water.

The gutter well is installed under the downspout along the building wall. A protective grid prevents leaves and other debris from entering the stormwater drain. The delivery includes a fixed 315 mm funnel section, a removable cast iron cover, and a rotationally molded 315 x 500 mm body with one 110 mm outlet. The sediment height is 100 mm.

Sales unit pcs
Material polyethylene
Colour black
Discharge connection diameter 110 mm
Bottom outer diameter 315 mm
Total height 500 mm
Body height 500 mm
Usage unit pcs
Conversion factor 1
Building 2000 class 257.1
Weight of the sales unit (kg) 4
Package type pc
DWG
Technical drawings
