Water chamber PVK 400/315mm butterfly valve

Drainage well with flap valve for collecting stormwater and drainage water

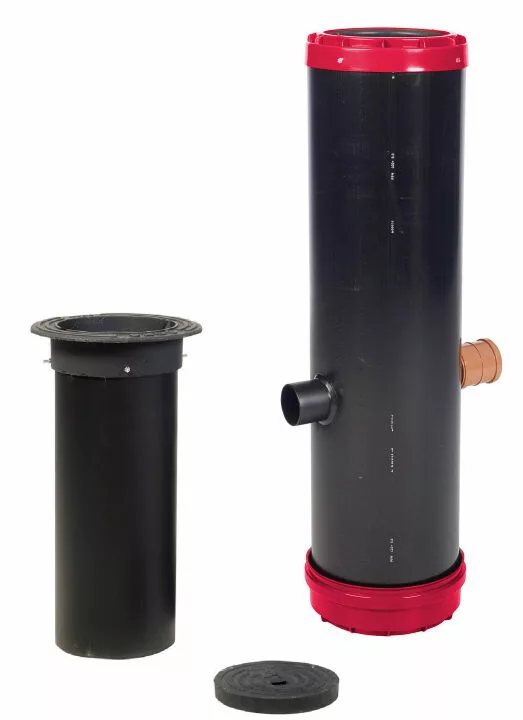

The Meltex 400/315 drainage well features a flap valve at the inlet, with a height difference of only 20 mm between the inlet and outlet. The outlet is equipped with a water trap. The well includes a 70-liter sediment trap and has a total height of 1500 mm.

The well package includes a standard 315×750 mm telescopic pipe and a 40-ton cast iron cover. The drainage well is also available without the cast iron cover if placed in areas without traffic. In this case, an RST cover or a lightweight plastic cover can be selected.

The drainage well bodies are manufactured at Meltex’s factories in Kuhmoinen and Keuruu, and wells are assembled at various locations. The primary materials used in the wells and well components are polyethylene (PE), polypropylene (PP), and polyvinyl chloride (PVC). Meltex drainage wells meet the requirements of standard SFS 3468 and special instruction EO 343.
