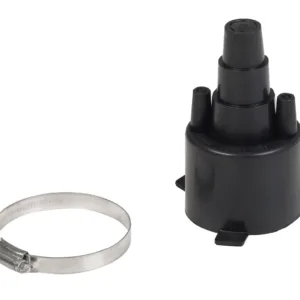

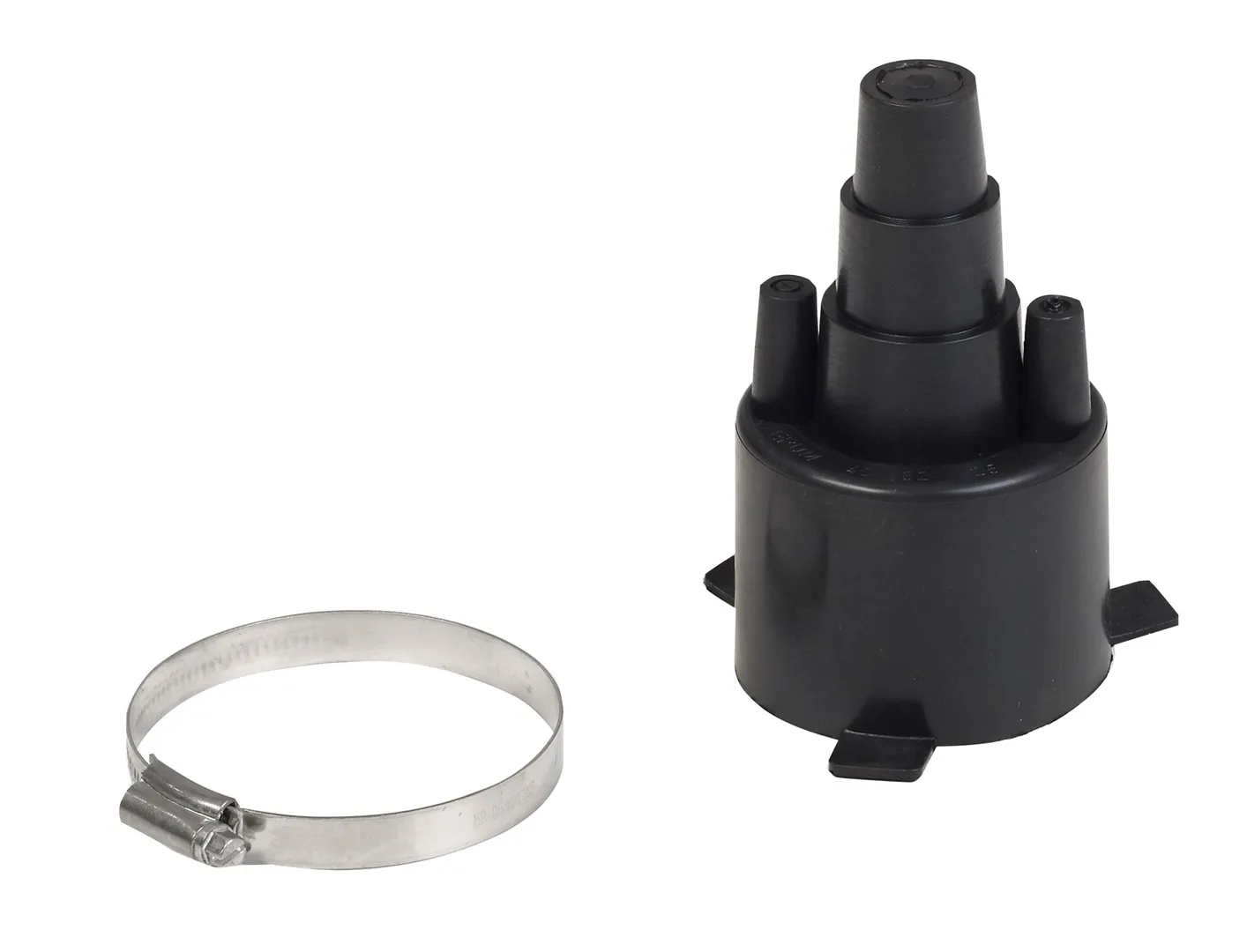

Single end cap
End cap for insulated single-flow pipe elements
Product options
Single end cap 22-40/110
| Product code | 148900 |
|---|---|
| HVAC number | 3018000 |
| Package size | 15 pcs |
Single end cap 25-40/75
| Product code | 148905 |
|---|---|
| HVAC number | 3018001 |
| Package size | 25 pcs |

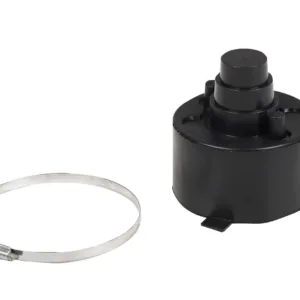

Single end cap 50-75/160
| Product code | 148910 |
|---|---|
| HVAC number | 3018002 |
| Package size | 15 pcs |
Single end cap 75-110/200
| Product code | 148915 |
|---|---|
| HVAC number | 3018003 |
| Package size | 10 pcs |
Single end cap 90-110/200
| Product code | 148920 |
|---|---|
| Package size | 10 pcs |
Product details
End cap for insulated single-flow pipe elements
The end caps seal the ends of the insulated pipe. They prevent moisture from entering the pipe’s insulation layers and are always used in insulated pipe wells. The end caps feature penetrations for different flow pipe sizes, and they are cut open with scissors at the appropriate point for the pipe size. The end cap is secured around the pipe’s protective casing with an acid-resistant clamp, and the elastic penetrations for the flow pipes are tight as is.
The end caps for insulated pipes are made of EPDM rubber.
| Material | rubber |
|---|---|
| Material quality | EPDM |
| Colour | black |
| Usage unit | pcs |
| Building 2000 class | 143 |
| Package type | pc |
|---|
