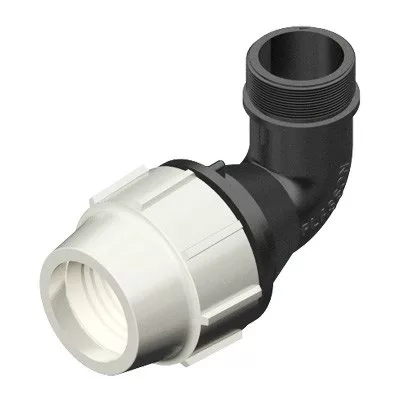

Elbow connector Plasson 90° external thread

90° plastic threaded connector with external thread for joining pressure pipes.

Plasson plastic threaded connectors are suitable for installations with a pressure class of PN16 for water supply systems. The connectors have been tested and approved according to international standards ISO 14236 and AS/NZ 4129. All connectors withstand the same temperatures as PE pipes and should not be used with hot water. The connectors can withstand temperatures below freezing. All threads conform to the standards ISO7/1, BS 21-1973, DIN 2999, NEN 3258, AS 1722 part 1 – 1975. Internal threads under 3” are cylindrical, while all other internal and external threads are tapered.

Body: polypropylene (PP)
Nut: polypropylene (PP)
Grip ring: polyacetal (POM)
Seal: nitrile rubber (NBR, EPDM)
Thread reinforcement ring: stainless steel
Threaded parts: stainless steel / galvanized steel

Plasson is certified according to the ISO 9001 quality management system. ISO 9001 requires careful monitoring of the entire production process. The pipe parts have been designed, tested, and inspected according to Plasson’s internal standards, which meet the requirements of standards SS-EN1555 and SS-EN12201.

With 40 years of experience, Plasson is one of the world’s leading manufacturers of pipe fittings. Water supply systems and accessories made by Plasson are used in over 80 countries.

Note! If you intend to use the connectors with fluids other than water (e.g., heat transfer fluids), ensure the compatibility of the materials and the fluid.
