NTS 1500-3000 Municipal pumping station

The NTS series pumping stations equipped with fiberglass tanks can be used as both stormwater and groundwater pumping stations, as well as wastewater pumping stations.

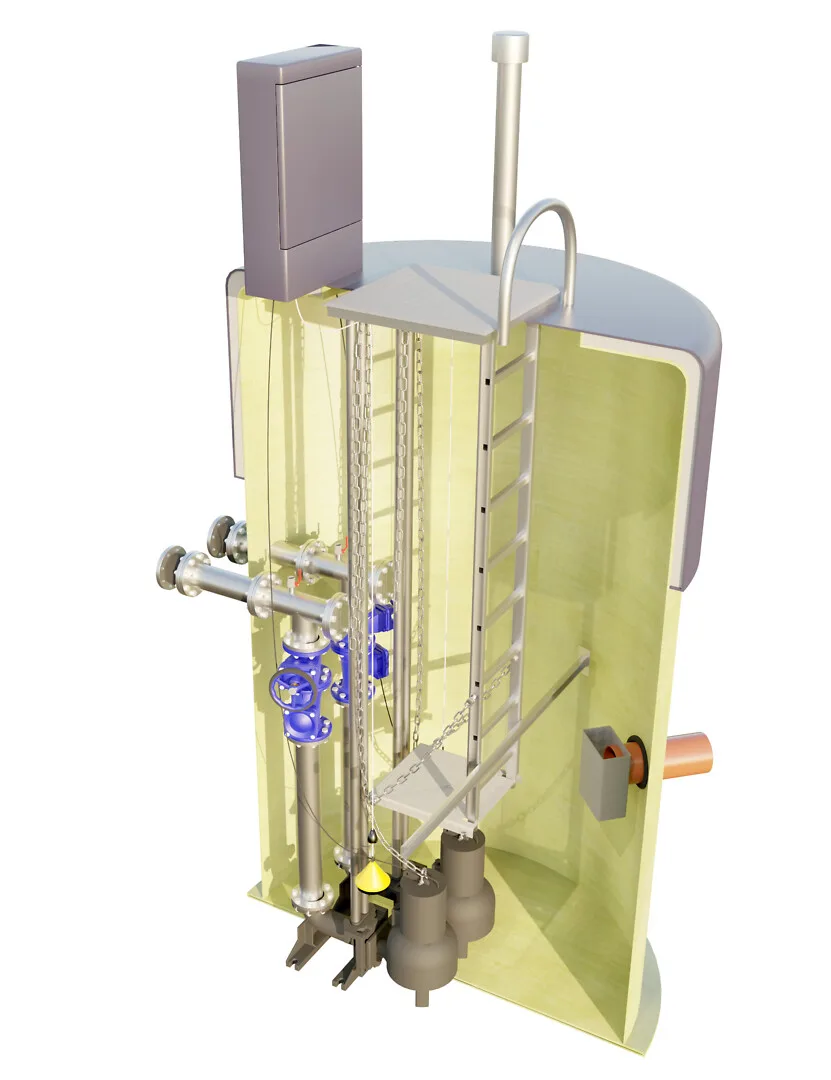

The NTS series pumping station is a solution where one or more submersible pumps are placed in the tank. The piping material used is acid-resistant steel or other suitable materials, and it is equipped with high-quality check and shut-off valves.

The pumps are lowered into the tank via a guide pipe, and the submersible float attached to the pump automatically connects to a switch box installed at the bottom of the tank. During maintenance, the pump is lifted up from the tank along the guide pipe. The lid of the pumping station, control center, control system, and other technical solutions are tailored according to the application and order.

Diameter options range from 1500 to 3000 mm.
