Oil and sand separator OH-02
Oil and sand separator pit, for example, as a floor drain for garages and carports.
Product options

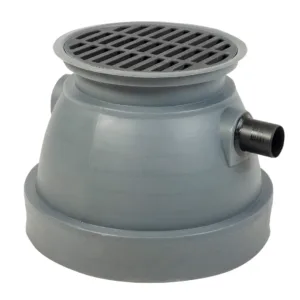

Oil and sand separator OH-02, 0,2l/s, 1,5tn
| Product code | 124650 |
|---|---|
| HVAC number | 3640900 |

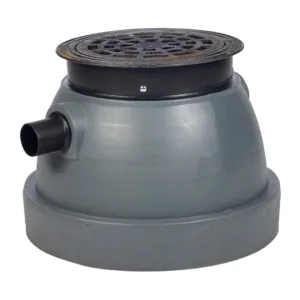

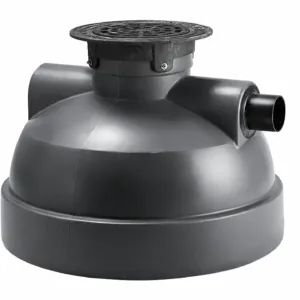

Oil and sand separator OH-02, 0,2l/s, 40tn
| Product code | 124655 |
|---|---|
| HVAC number | 3640901 |
Product details
Oil and sand separator pit, for example, as a floor drain for garages and carports.

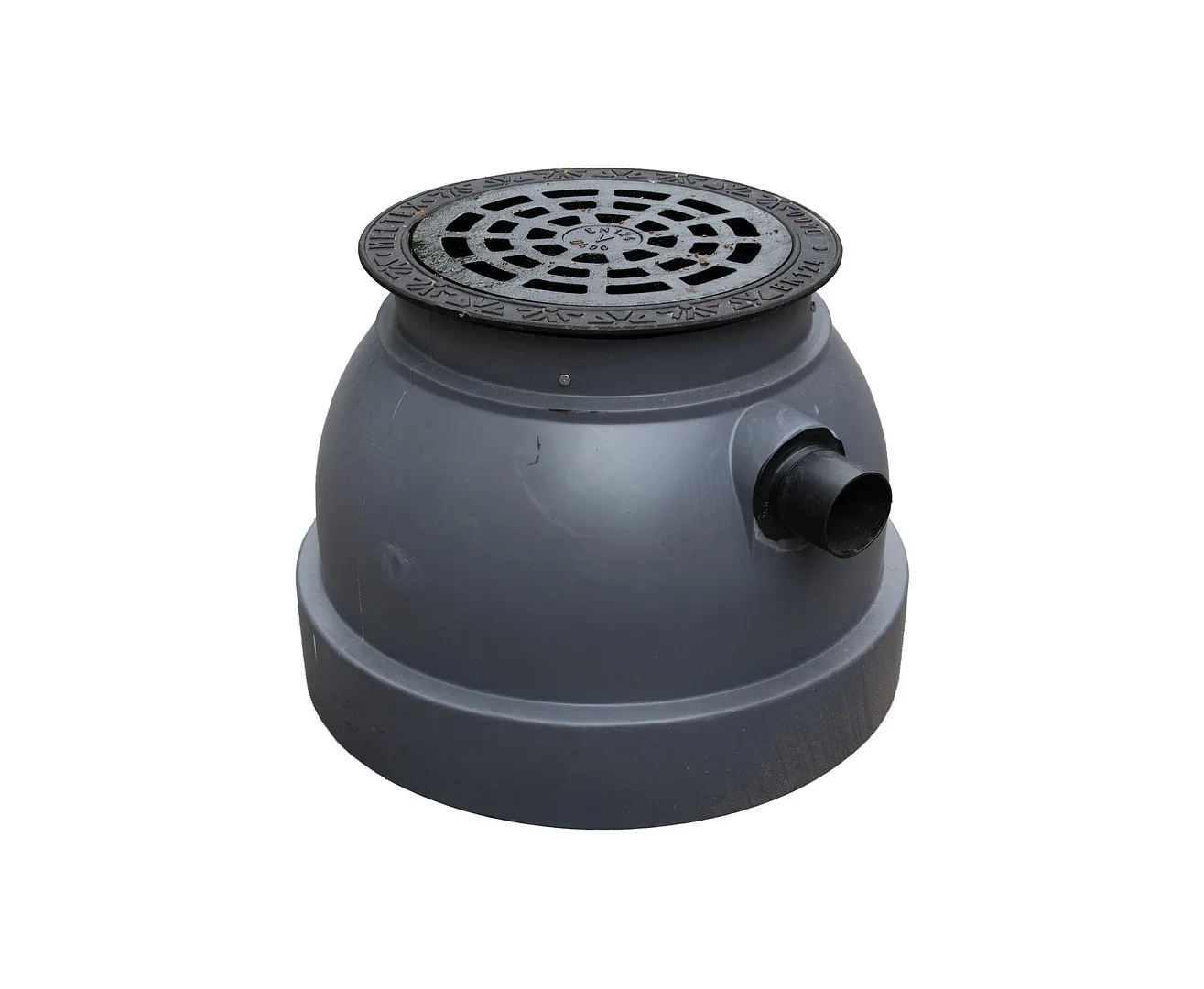

The Meltex OH-02 oil and sand separator pit separates sand and other solid materials as well as oil from water before drainage. The sludge storage capacity is 50 liters, and the water and oil storage capacity is 120 liters. The OH-02 separator pit has a capacity of 0.2 l/s and is equipped with a 1.5 tn / 600mm or 40 tn / 500mm lid.
Meltex oil and sand separator pits meet the requirements of the building regulations collection D1.
| Material | polyethylene |
|---|---|
| Colour | grey |
| Discharge connection diameter | 110 mm |
| Body height | 660 mm |
| Flow rate | 0.2 l/s |
| Water and oil storage | 120 l |
| Sludge storage | 50 l |
| Usage unit | pcs |
| Building 2000 class | 613.21 |
| Package type | pc |
|---|
