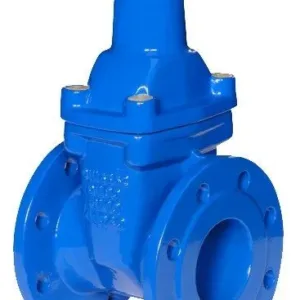

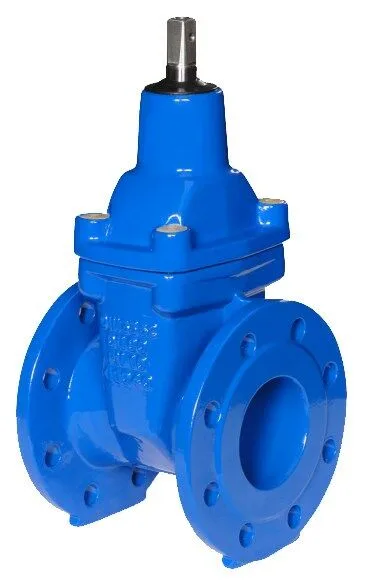

DuraStop Flanged valve
High-quality rubber gate valve for drinking and raw water pipelines PN10, short body model
Product options
DuraStop Flange valve DN80, SGPS
| Product code | 451105 |
|---|---|
| HVAC number | 3832025 |
| Package size | 1 pcs |
DuraStop Flange valve DN100, SGPS
| Product code | 451110 |
|---|---|
| HVAC number | 3832026 |
| Package size | 1 pcs |
DuraStop Flange valve DN150, SGPS
| Product code | 451115 |
|---|---|
| HVAC number | 3832027 |
| Package size | 1 pcs |
DuraStop Flange valve DN200, SGPS
| Product code | 451120 |
|---|---|
| HVAC number | 3832029 |
| Package size | 1 pcs |
DuraStop Flange valve DN250, SGPS
| Product code | 451125 |
|---|---|
| HVAC number | 3832031 |
| Package size | 1 pcs |
DuraStop Flange valve DN300, SGPS
| Product code | 451130 |
|---|---|
| HVAC number | 3832032 |
| Package size | 1 pcs |
Product details
High-quality rubber gate valve for drinking and raw water pipelines PN10, short body model
Technical specifications:
-Extremely easy to operate, needle-bearing spindle in larger sizes
-Design reduces sediment buildup
-Standard PN10 flange, optional PN16
-Body and cover in ductile iron (EN-GJS-500-7, EN 1563:2012)
-Epoxy coating 250 μm (EN ISO 12944-5:2009)
-EPDM seals (ISO 1629:2005)
-Gate in ductile iron (EN-GJS-500-7, EN 1563:2012)
