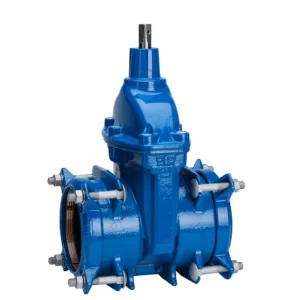

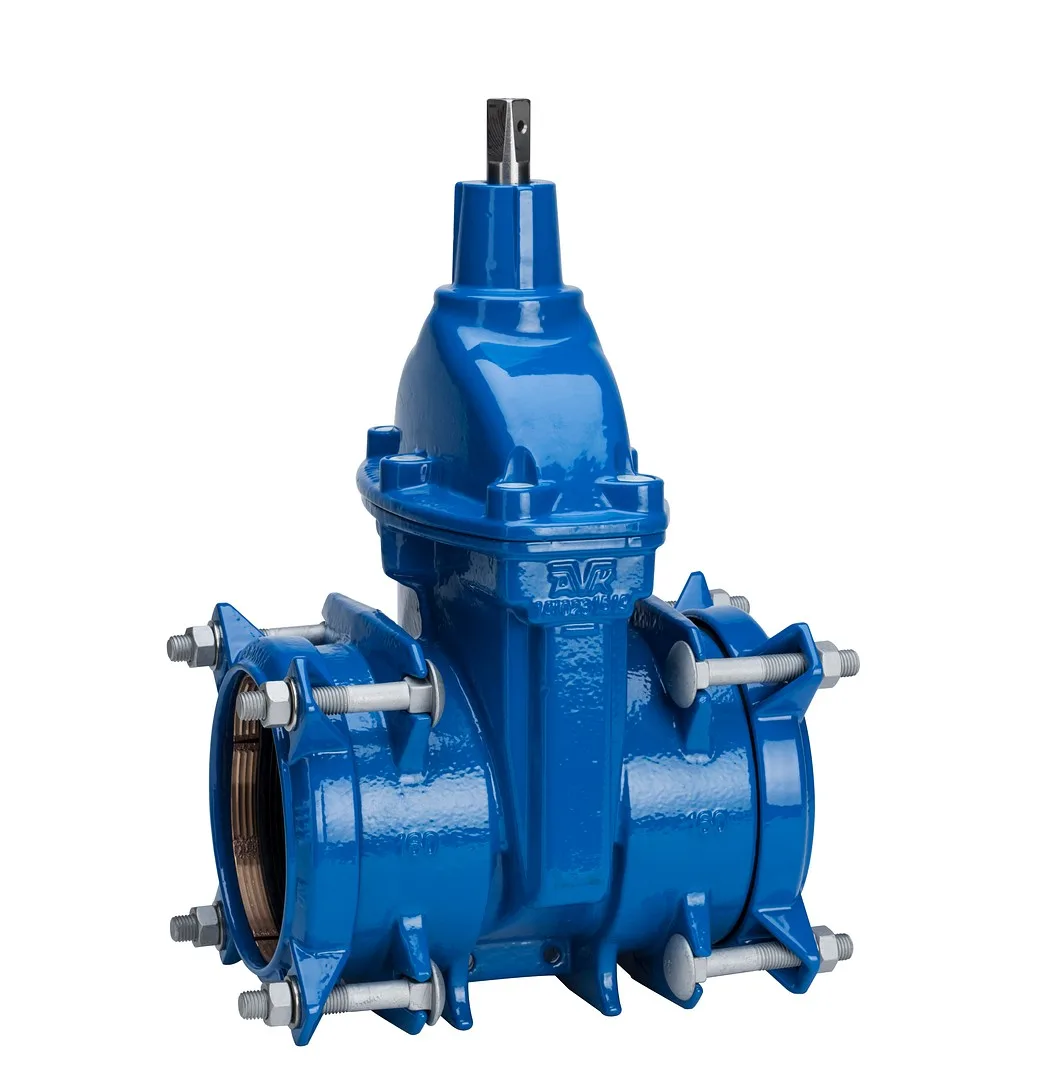

Supa Plus™ pull-resistant sleeve valve for PE and PVC pipes, for drinking water and neutral liquids, up to 70°C.
Product code | 450285 |
---|---|
HVAC number | 3833186 |
Product code | 450290 |
---|---|
HVAC number | 3833189 |
Product code | 450295 |
---|---|
HVAC number | 3833191 |
Supa Plus™ pull-resistant sleeve valve for PE and PVC pipes, for drinking water and neutral liquids, up to 70°C.
Every detail of AVK valves is designed with safety in mind. The slide is fully vulcanized with AVK’s own EPDM rubber compound, approved for drinking water. The robust construction of the slide, the rubber’s ability to return to its shape, and the double-bonded vulcanization process make the slide extremely durable. Thanks to the triple-seal system, durable shaft, and complete corrosion protection, the valve operates with exceptional reliability.
Features:
Solid, integrated slide nut prevents vibration and ensures a long service life.
Fully vulcanized rubber slide with drinking water-approved EPDM rubber.
Full bore.
Low operating torque.
Epoxy-coated according to DIN3476 part 1 and EN14901, GSK approved.
Both EPDM seal and pull-resistant sealing ring RG5 for PE and PVC-U pipes, allowing angular deviation of up to ±3.5.
The compression-type seal makes it easy to connect
Usage unit | pcs |
---|---|
Customs tariff number | 84818061 |
