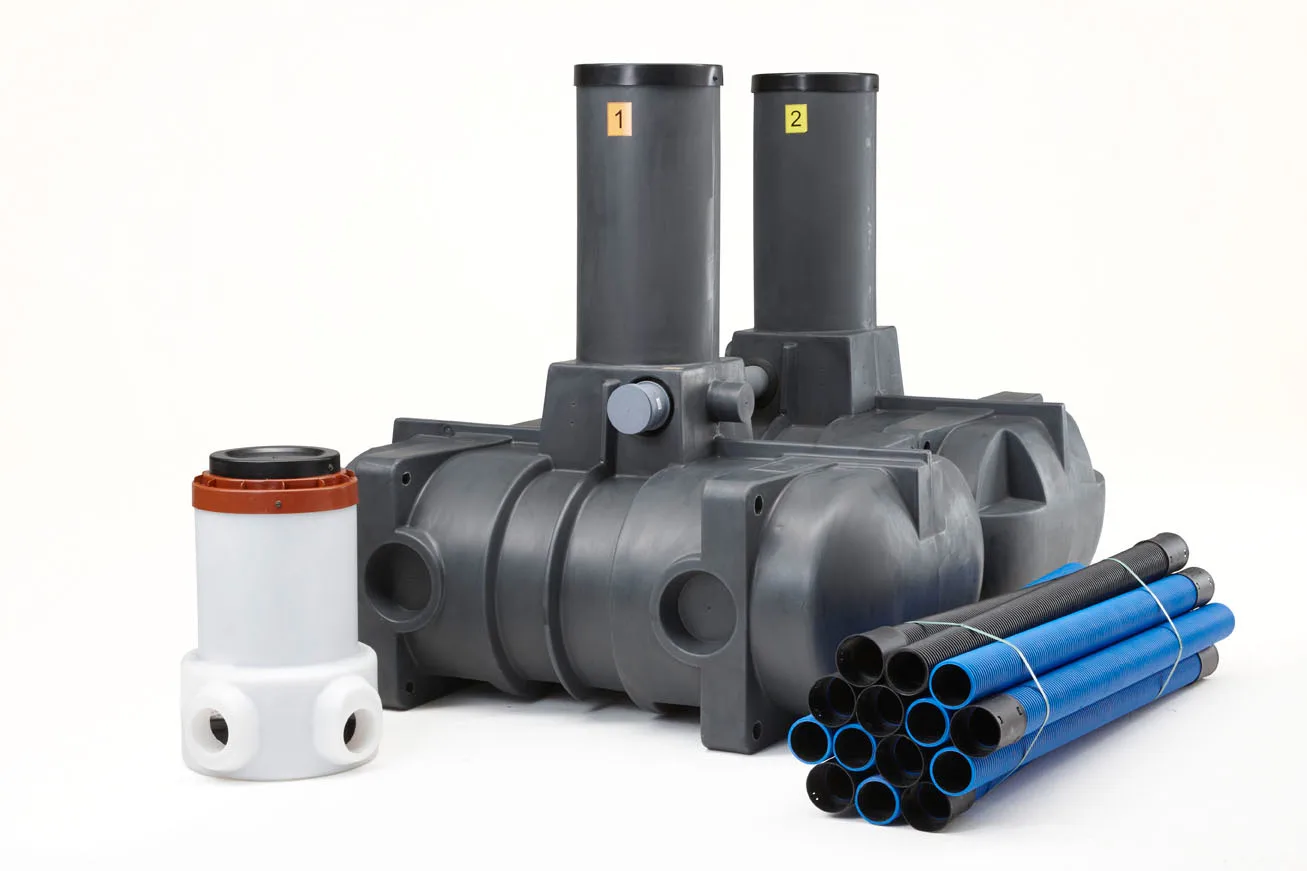

MX-Sako 3/2000 LOW-infiltration package

Product code 160405
HVAC number 3622210
pc.

Product details

Soakaway package for treating all household wastewater for 1-6 people in demanding conditions.

The MX-Sako 3/2000 low-profile package is a complete soakaway solution for single-family homes or year-round vacation homes, handling washing, household, and toilet wastewater. Its low-profile design enables installation even in challenging locations. The three-chamber tank effectively separates solid matter and kitchen grease from the wastewater. In the soakaway field, wastewater is absorbed, and organic matter decomposes in the bio-layer formed in the soakaway layer through microbial activity.

The tank has no moving parts or filters that require cleaning. Emptying the tank twice a year is sufficient when the system also handles toilet wastewater. If only graywater is directed into the tank, one emptying per year is enough. The tank should be filled with water immediately after emptying.

Inlet only 76.5 cm from the bottom of the tank – suitable for installation in difficult locations
Three-chamber design suitable for handling toilet wastewater
Efficient separation capacity, long service life
Easy to maintain
If necessary, the soakaway package can be expanded into a soil filter by equipping it with the MX collection pipe package (Product 160415). In this case, a collection piping system is installed beneath the soakaway pipes and filtration layer, leading to a collection pit at the end of the line, from which filtered water is directed to an appropriate discharge point.

Sales unit pc.
Nominal volume 2000 l
Material polyethylene
Colour grey
Capacity 6
Usage unit pcs
Conversion factor 1
Building 2000 class 613.23
Length of the sales unit (mm) 1600
Width of the sales unit (mm) 2300
Height of the sales unit (mm) 1800
Weight of the sales unit (kg) 235
Package type bundle
Asennusohjeet
DWG
Esitteet
Suoritustasoilmoitukset
  • 160405_STI_MX-Sako 3-2000 matala suoritustasoilmoitus.pdf (50 kt) Open Download
Tekniset kuvat
